2006-2008 Dodge Ram TIPM Fuse Box Wiring Harness Connector Plugs Set OEM

Condition

Used This is a genuine factory OEM Mopar wire harness connector plug repair kit. These plugs have been cleanly cut from the donor vehicle's engine bay wiring harness. All plastic housings are structurally sound, pins are clean, and the locking tabs are intact. Includes wire pigtails for easy splicing—please review the high-resolution photos to verify the exact wire layout for your project.

Item Specifics

• Brand: Mopar / Dodge Genuine OEM

• Compatible TIPM Part Number: P04692117AF (And matching supersessions/interchanges)

• Placement on Vehicle: Front, Engine Compartment (Underneath TIPM Fuse Box)

• Type: Electrical Wiring Harness Plugs / Pigtail Connectors

• Compatible Vehicles: 2006-2008 Dodge Ram 1500, 2500, 3500 Trucks

• Number of Pieces: [Insert Number, e.g., Complete Set of 7 Plugs / Individual Plug]

Description

Up for sale is a factory genuine OEM Mopar wiring harness connector plug repair kit designed specifically for 2006–2008 Dodge Ram trucks running the P04692117AF Totally Integrated Power Module (TIPM).

When a Dodge Ram experiences a severe TIPM failure, internal relays can overheat, resulting in melted plastic housings, corroded pin terminals, or broken locking tabs on the vehicle's factory harness plugs. A replacement fuse box will not fix your electrical issues if the harness side is damaged. This OEM pigtail set is the ultimate solution for repairing your existing harness without buying an expensive, entire front-end engine wiring loom.

Installation Note: This item features factory-cut wiring pigtails left on each connector plug, allowing you to cleanly strip, splice, and heat-shrink/solder the new, un-melted plugs directly into your truck's original wiring layout. Because wire colors and pinouts can subtly vary depending on your truck's factory trim packages, options, and engine type (Gas vs. Diesel), please carefully match your original plug configurations pin-by-pin during installation.

Included in this listing:

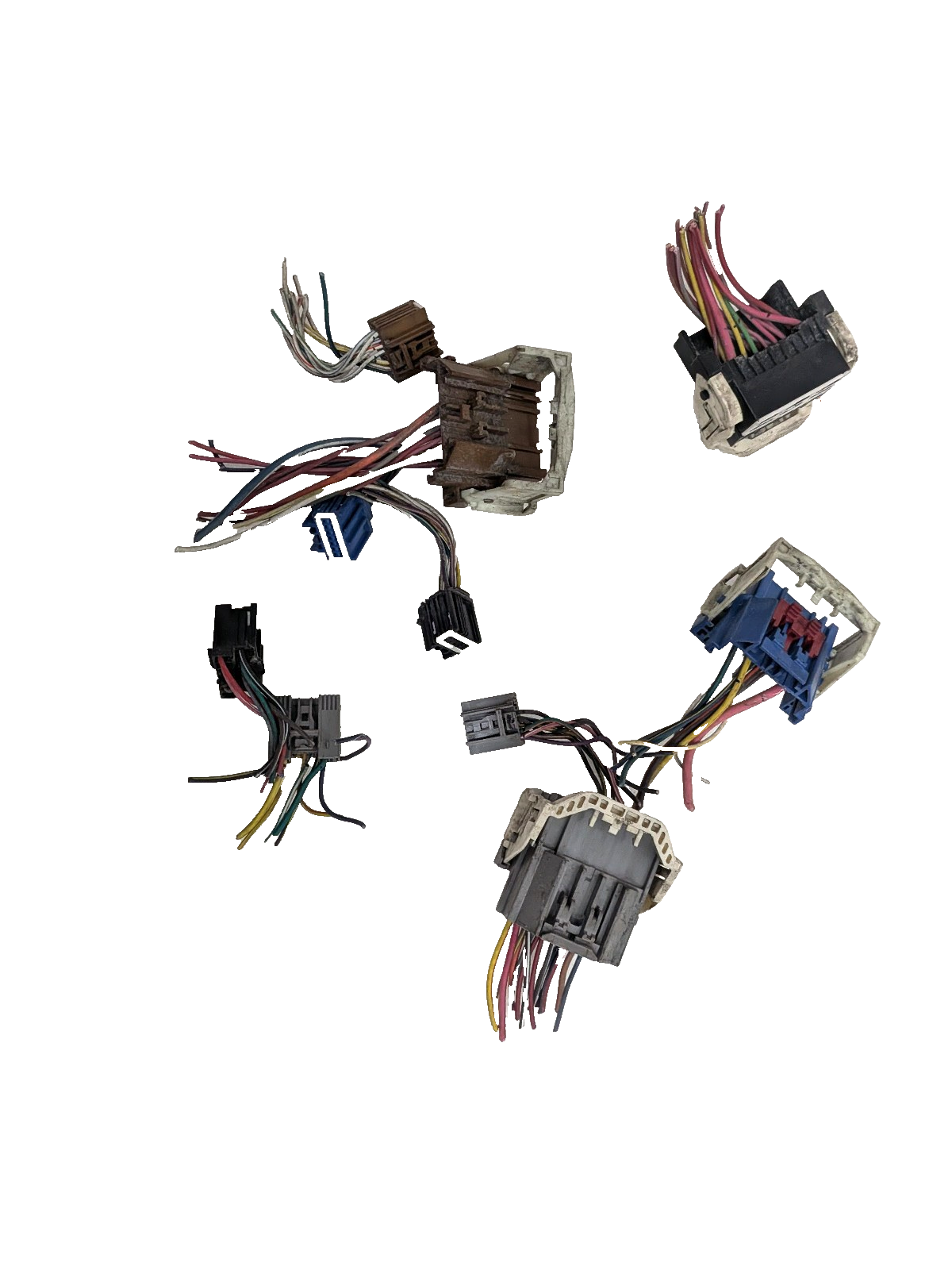

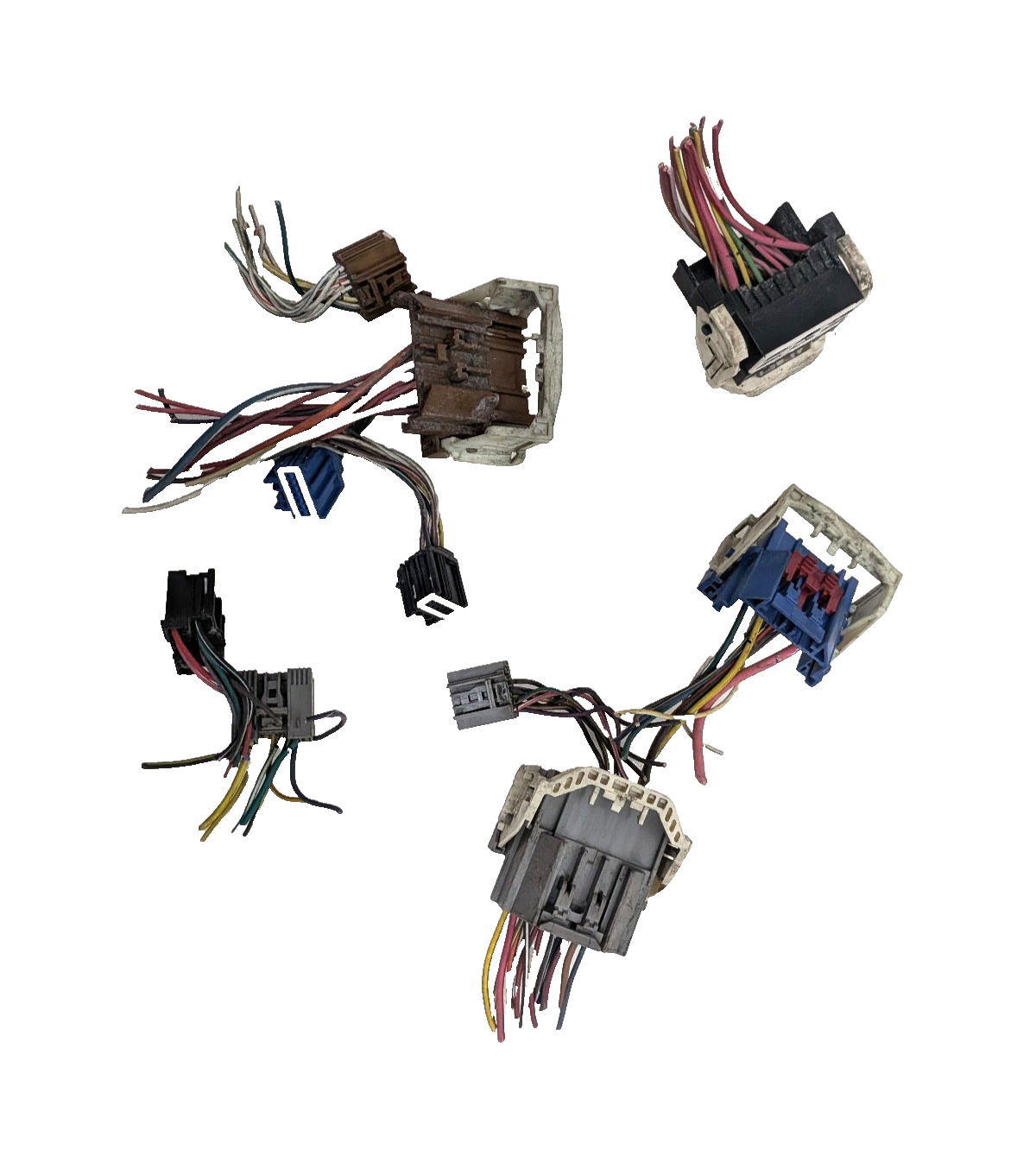

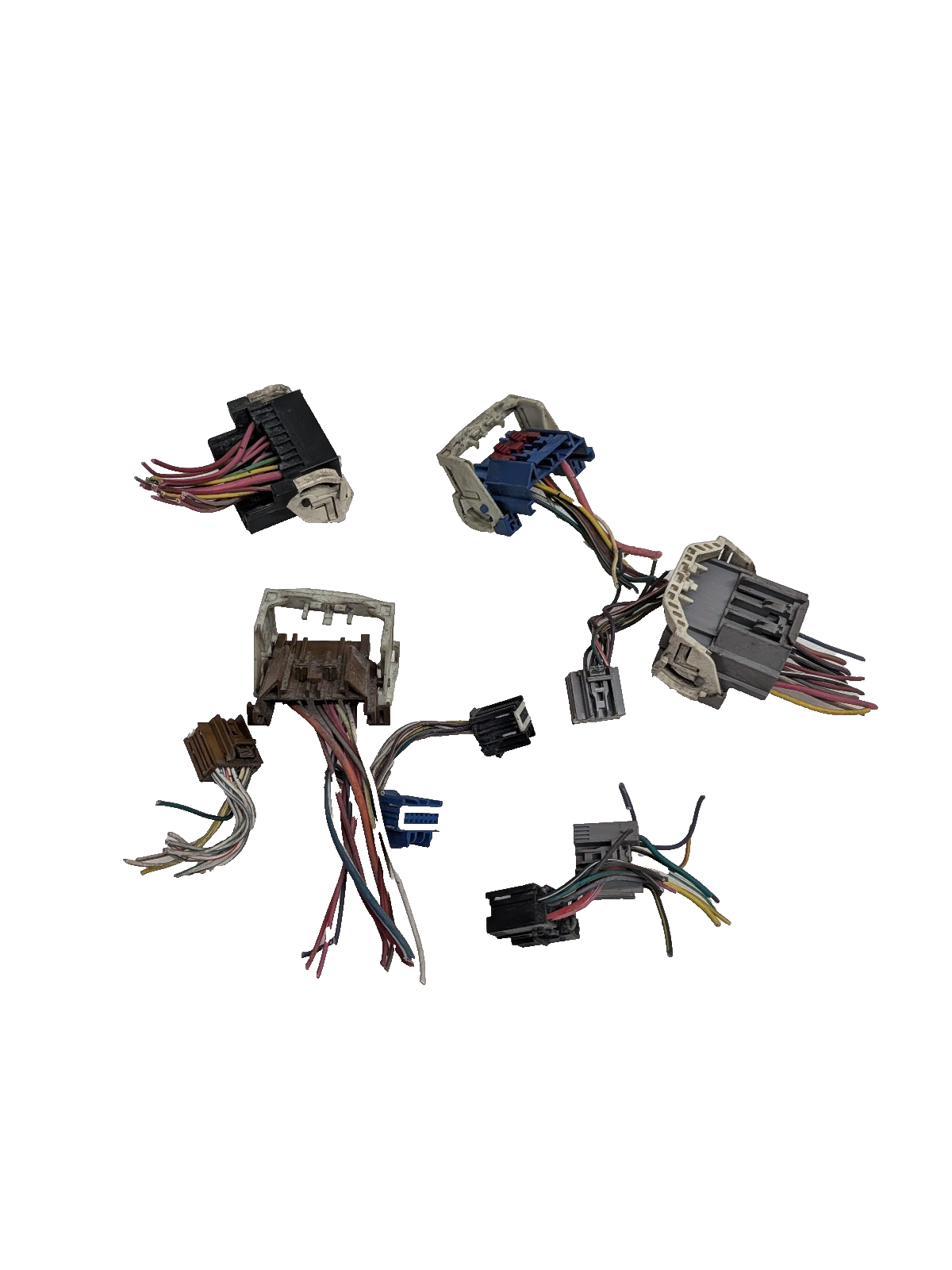

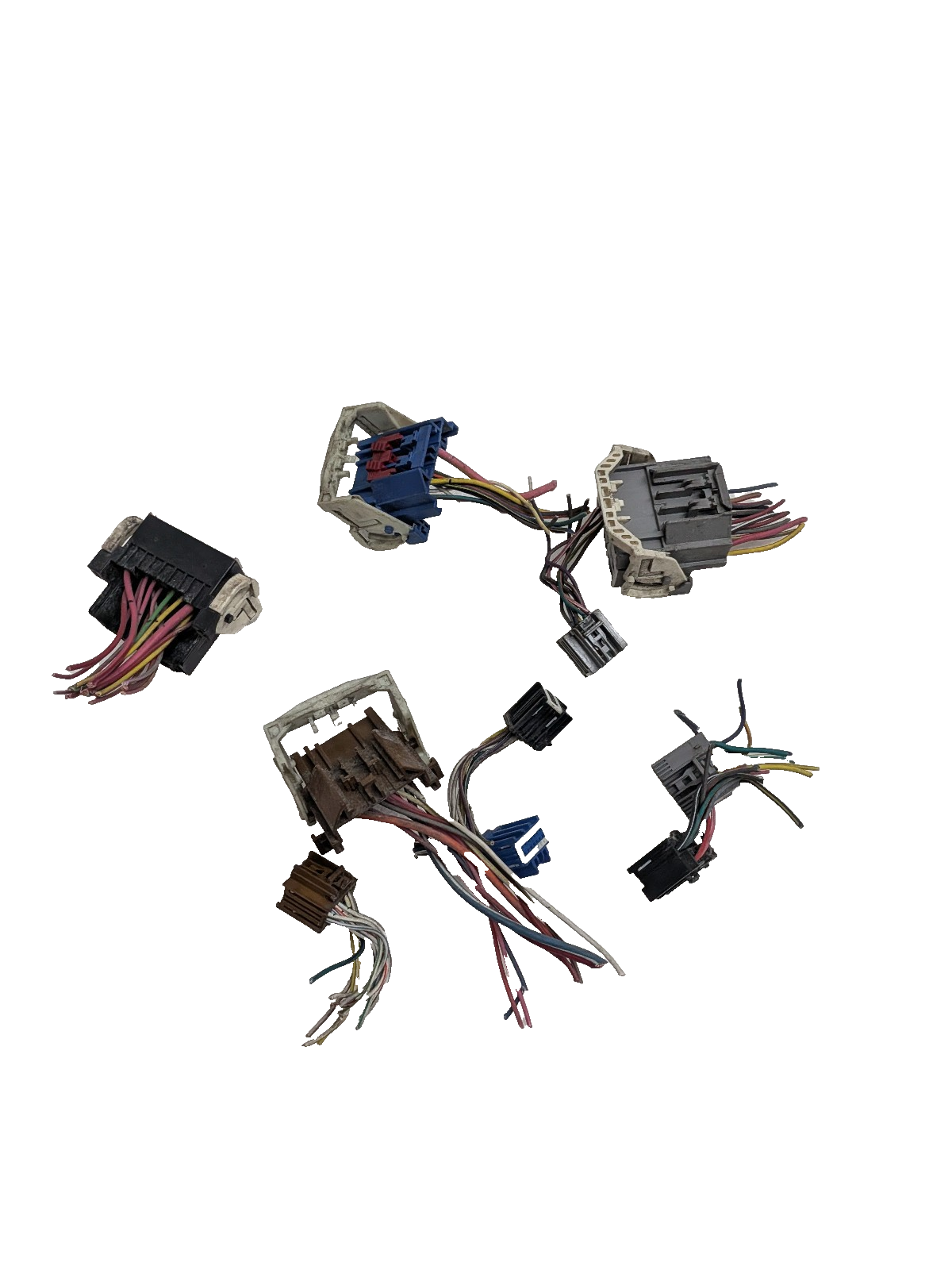

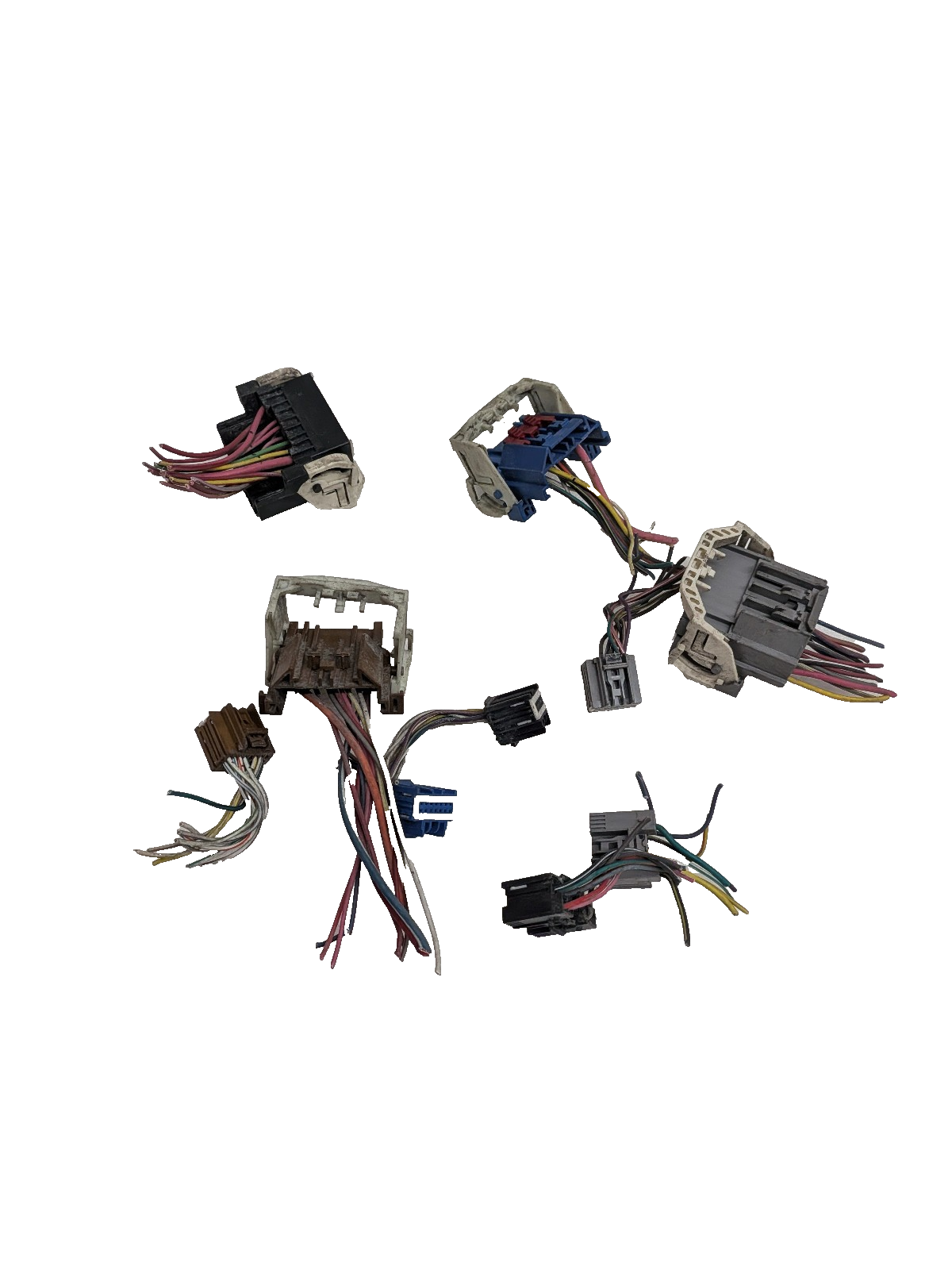

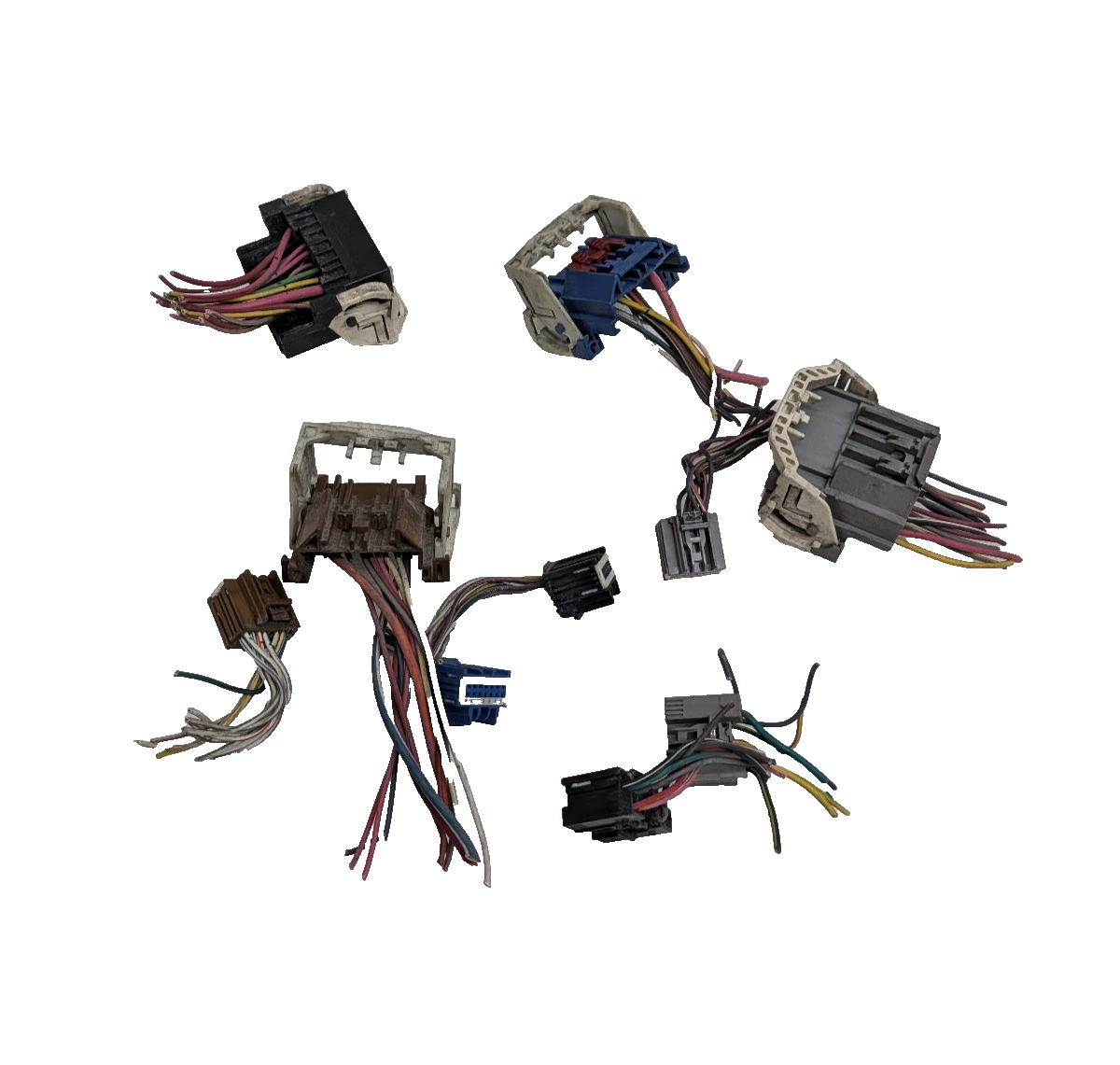

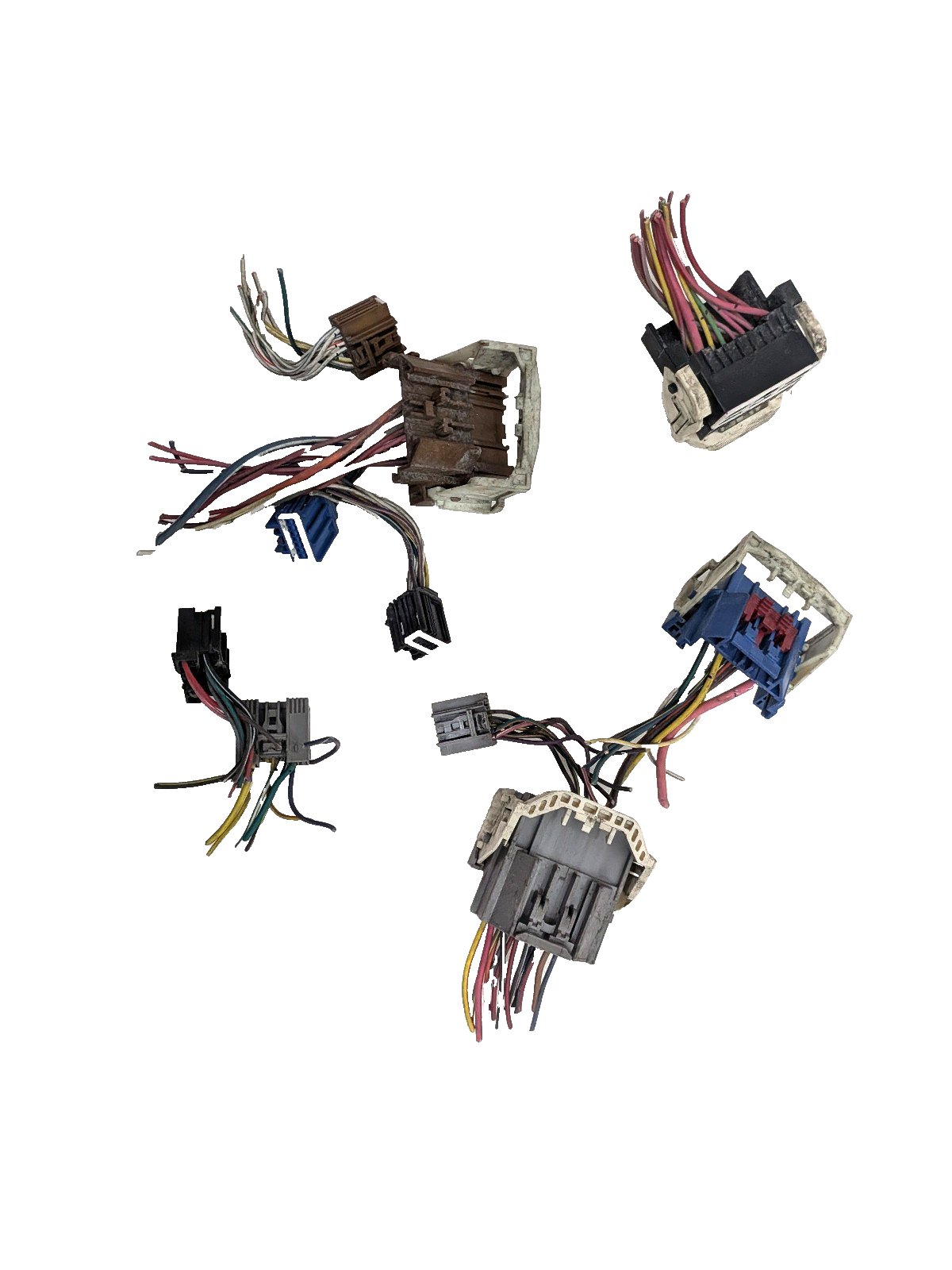

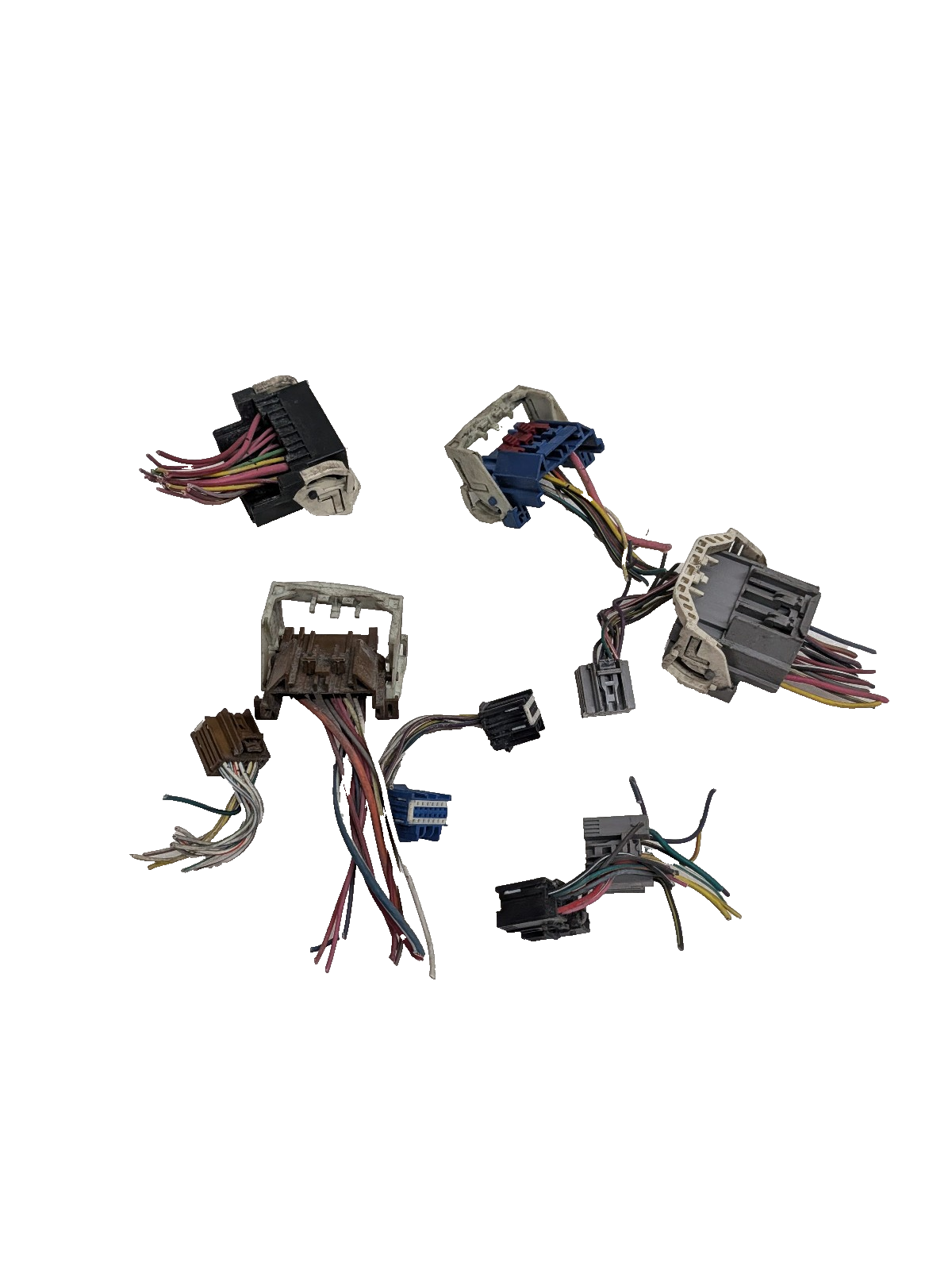

 Complete set of 7 unique TIPM harness plugs with wire pigtails attached

Shipping & Logistics

• Handling Time: Ships within 2 Business Days of cleared payment.

• Carrier: Shipped via USPS or UPS (depending on package size and destination) with tracking automatically uploaded.

• Packaging: Securely packaged to protect the plastic housings and delicate pins from any damage during transit.

Thank you for looking! If you need specific close-up photos of individual plugs or wire colors before purchasing, please send us a message and we will gladly assist you.
